PACKAGING MACHINES
SEMI-AUTOMATIC STRAPPING MACHINE
CONTINIOUS BAND SEALING MACHINE
SHRINK TUNNEL
L - SEALER
CARTON TAPING MACHINE
VACCUM PACKING MACHINE
SEMI-AUTOMATIC STRECH WRAPPING MACHINE
PACKAGING MATERIALS & TOOLS

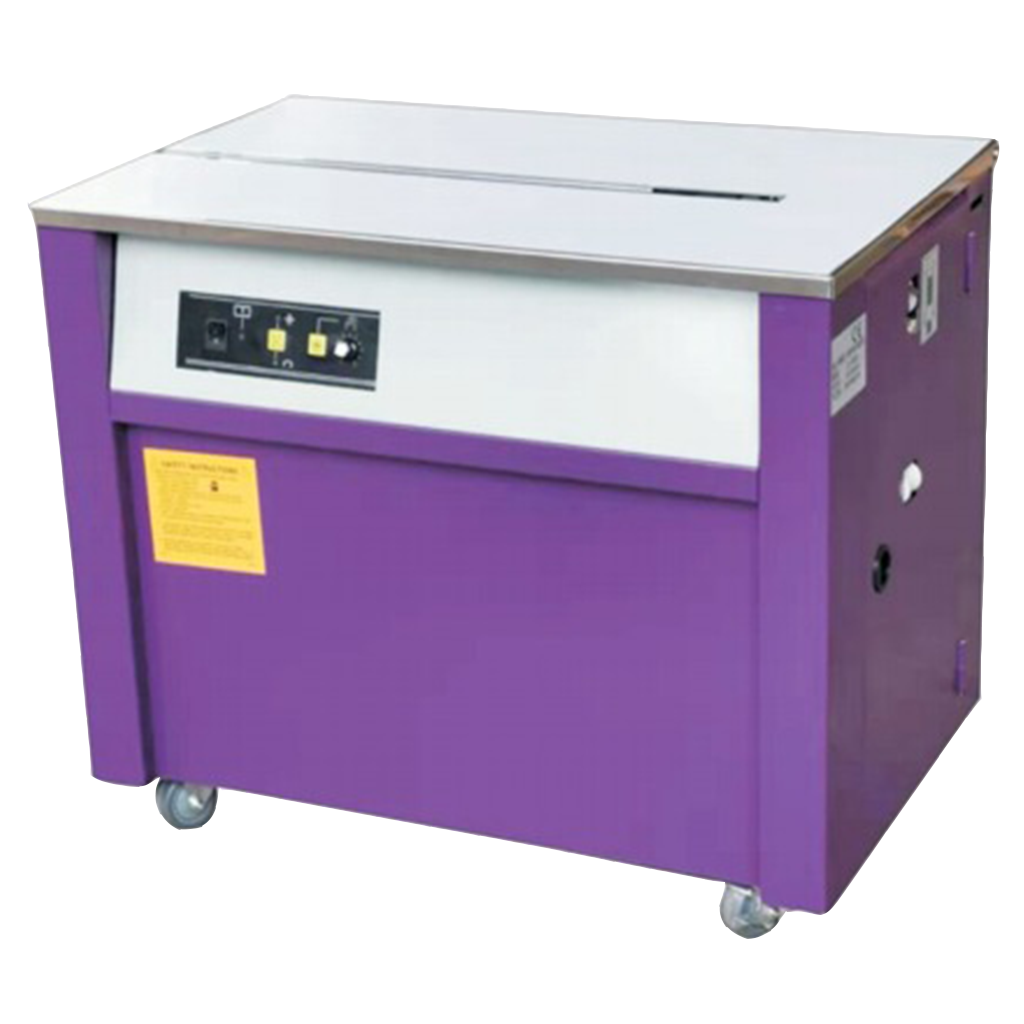

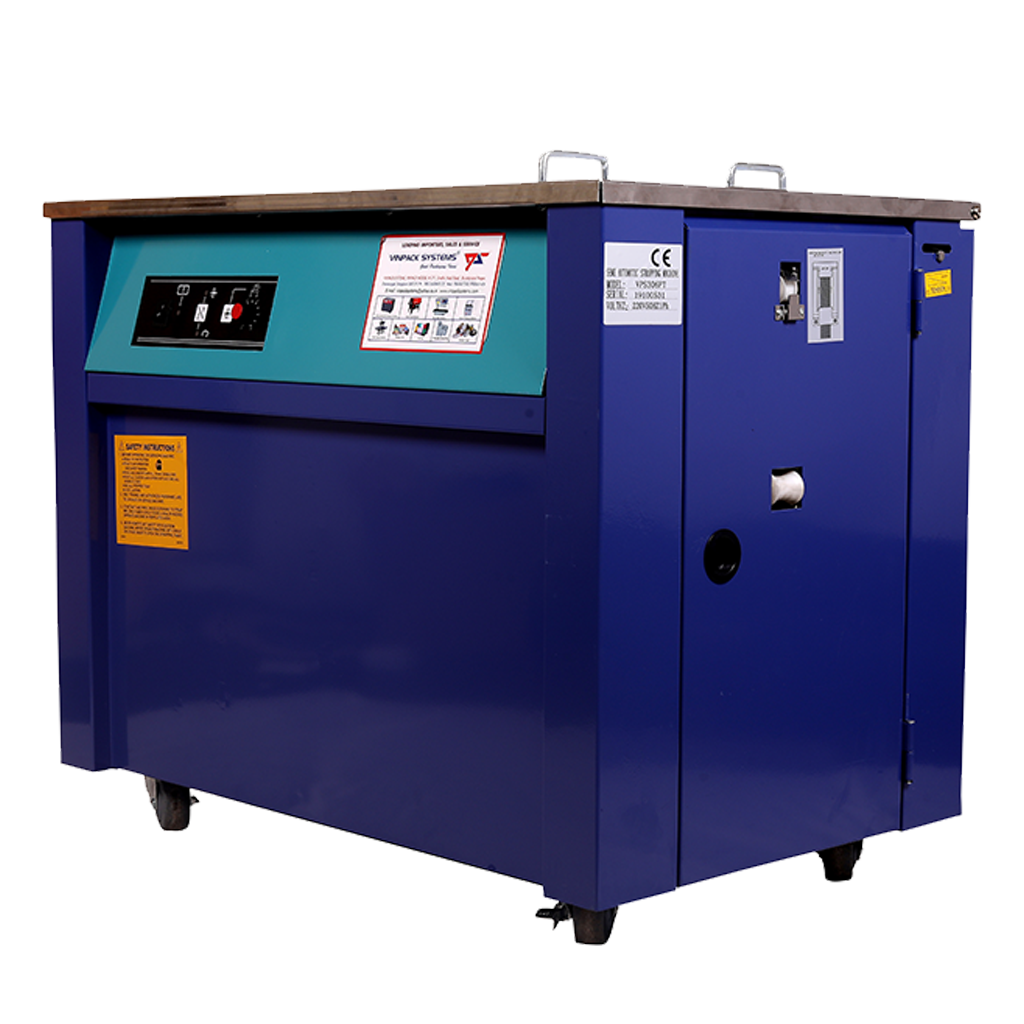

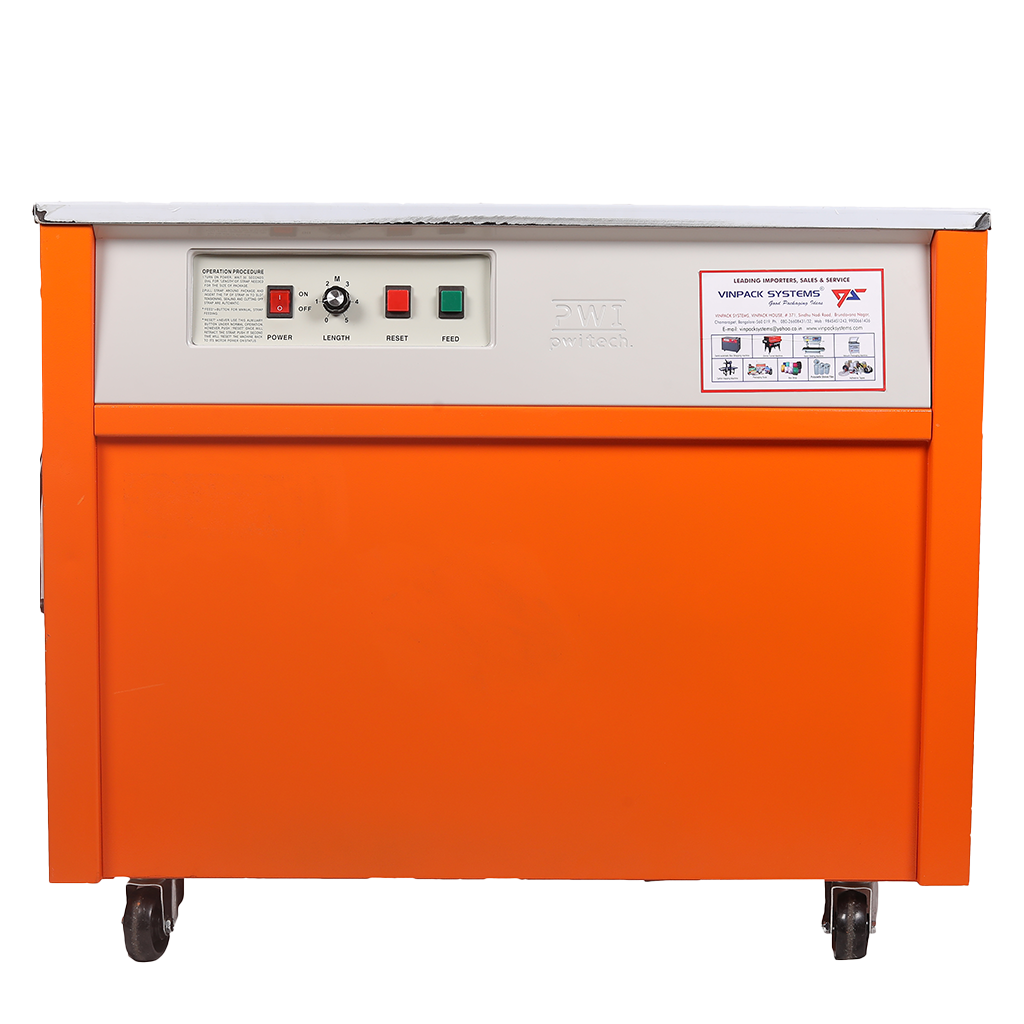

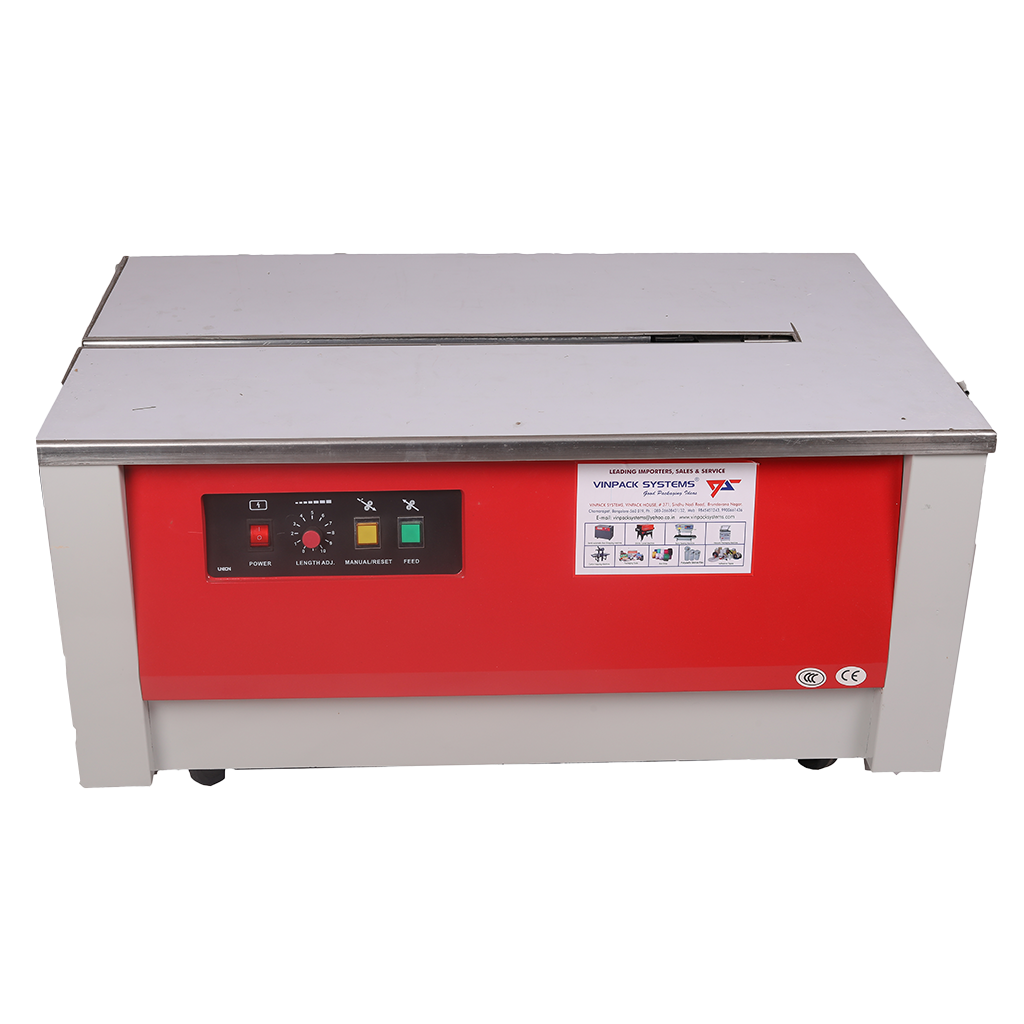

SEMI-AUTOMATIC
STRAPPING MACHINE
Model : VPS-306H
Specification
- Power Supply : Single Phase, 220V, 50Hz
- Driving Motor : ¼ HP, 220V 200W
- Dimensions : 910(l) x 590(w) x 730mm (h)
- Strap Width : 6mm, 9mm, 12mm & 15mm
- Strapping Speed : 1.5 sec/strap
- Min. Package Size : 60mm
- Max. Package Size : Any Size
- Weight : 100 Kg
- Sealing Method : Heat Sealing
Also available special applicaiton models with low height, ball bearing top, SS body, etc.

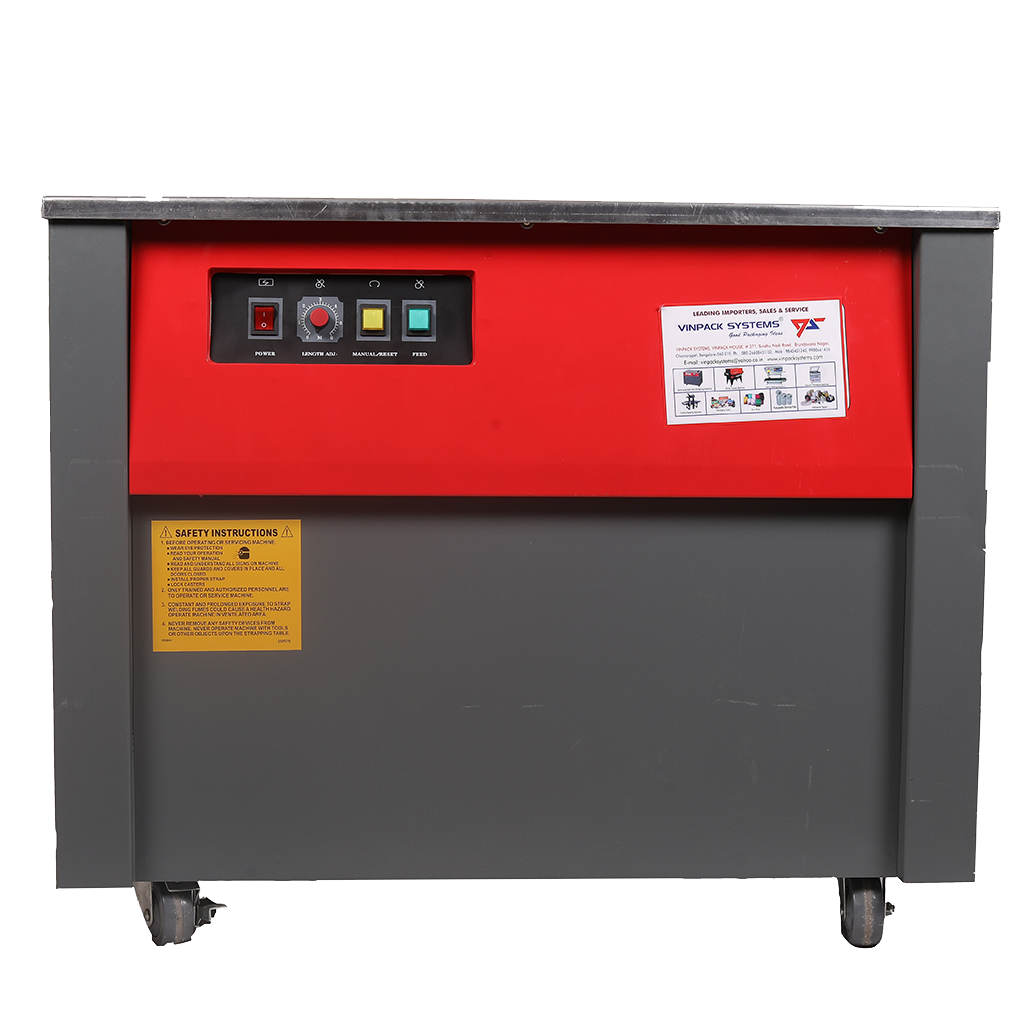

SEMI-AUTOMATIC
STRAPPING MACHINE
Model : VPS-306H
Specification
- Power Supply : Single Phase, 220V, 50Hz
- Driving Motor : ¼ HP, 220V 200W
- Dimensions : 910(l) x 590(w) x 730mm (h)
- Strap Width : 6mm, 9mm, 12mm & 15mm
- Strapping Speed : 1.5 sec/strap
- Min. Package Size : 60mm
- Max. Package Size : Any Size
- Weight : 100 Kg
- Sealing Method : Heat Sealing
FULLY AUTOMATIC
STRAPPING MACHINE
Specification
- Power Supply : 3 Phase, 415V, 50Hz
- Arch Size : W 850 x H 600 (Standard)
- Strap Width : 9mm, 12mm, 15mm, 19mm
- Strap Tension : Max. 90 Kgs.
- Stapping Speed : 2.4 sec / strap
- Weight : 250 Kg
- Size : L 1460 x W 606 x H 1521 mm

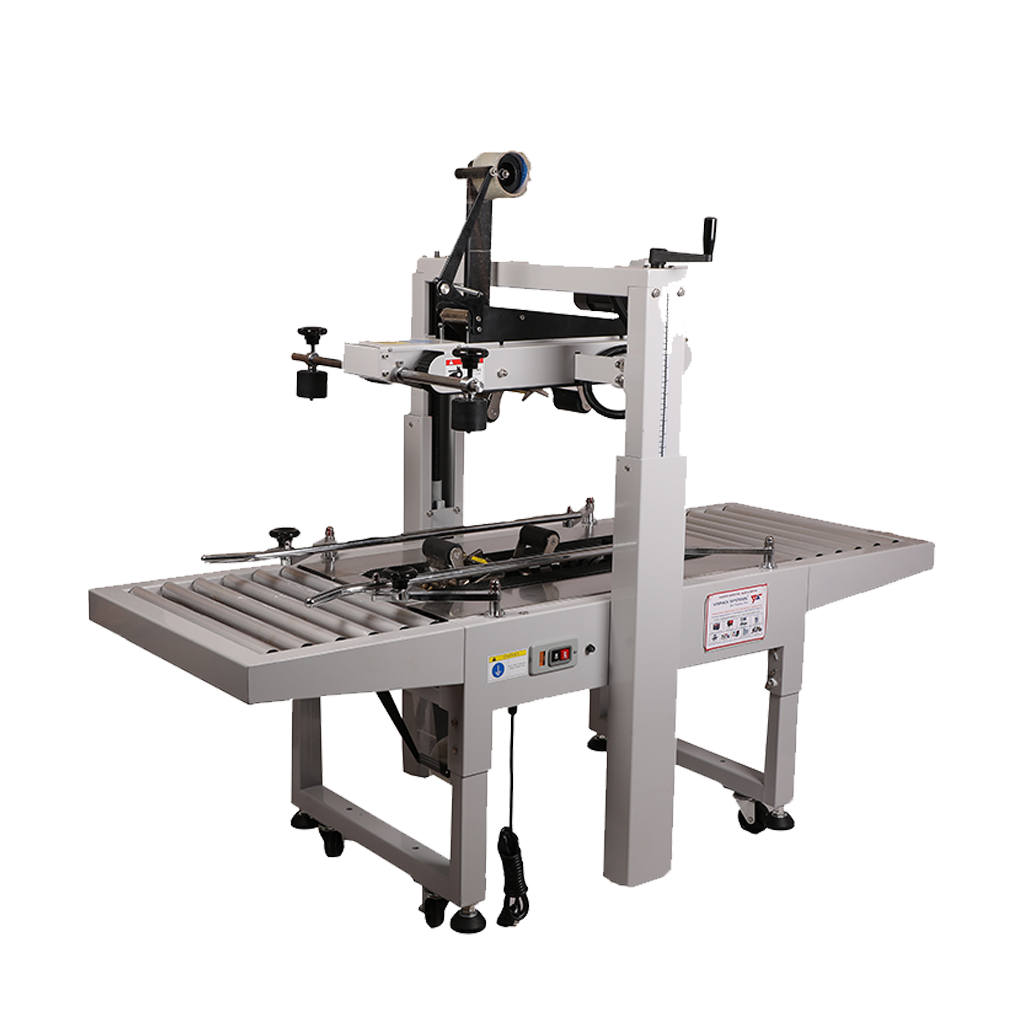

CARTON TAPING
MACHINE
Specification
- Power Supply : Single Phase, 220V, 50Hz
- Tape Width : 2″ (3″ Optional)
- Dimensions : 910(l) x 590(w) x 730mm (h)
- Sealing Speed : 20 M / min
- Case Range : L 150, W-200-500, H120-500mm
- Weight : 150 Kg
- Size : L 1200 x W 790 x H 1435-1775 mm
Top and bottom drive ensures perfect packing even for bulging, light, heavy & light cartons.

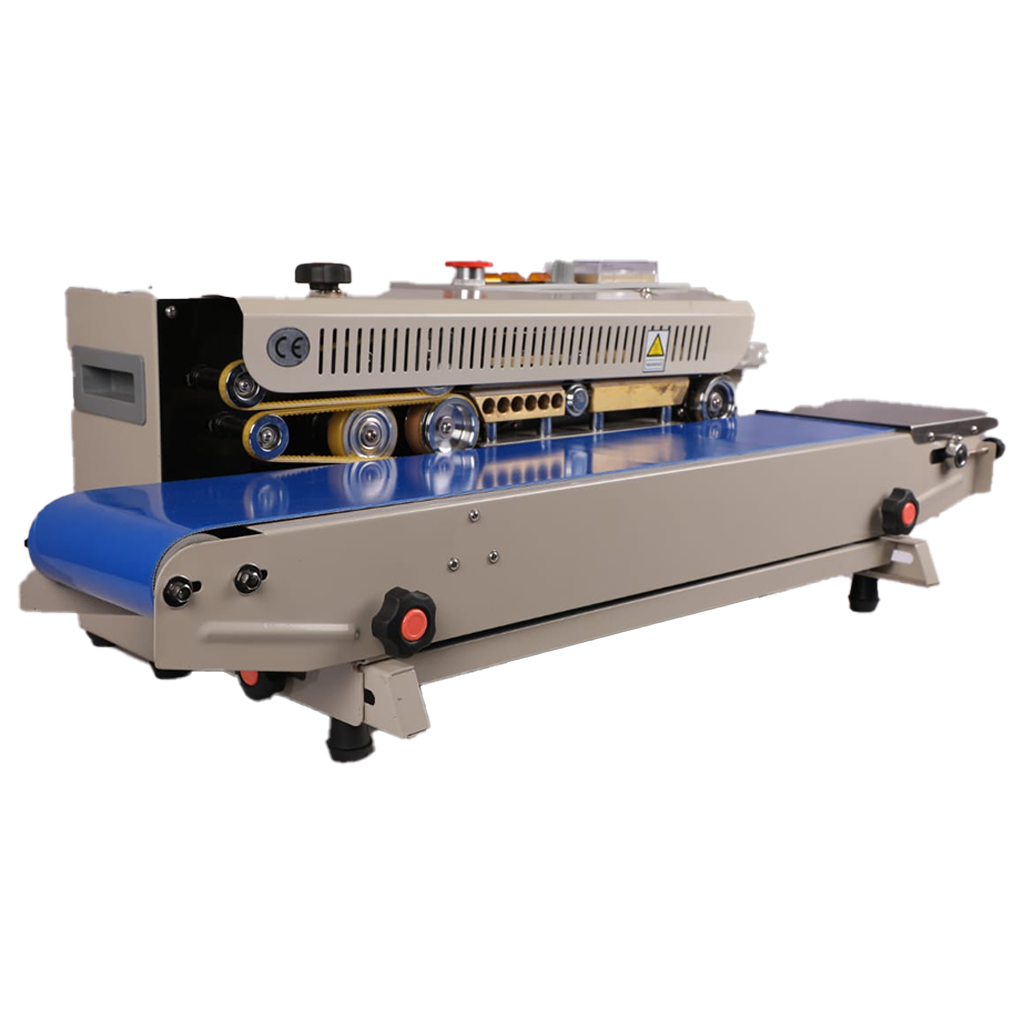

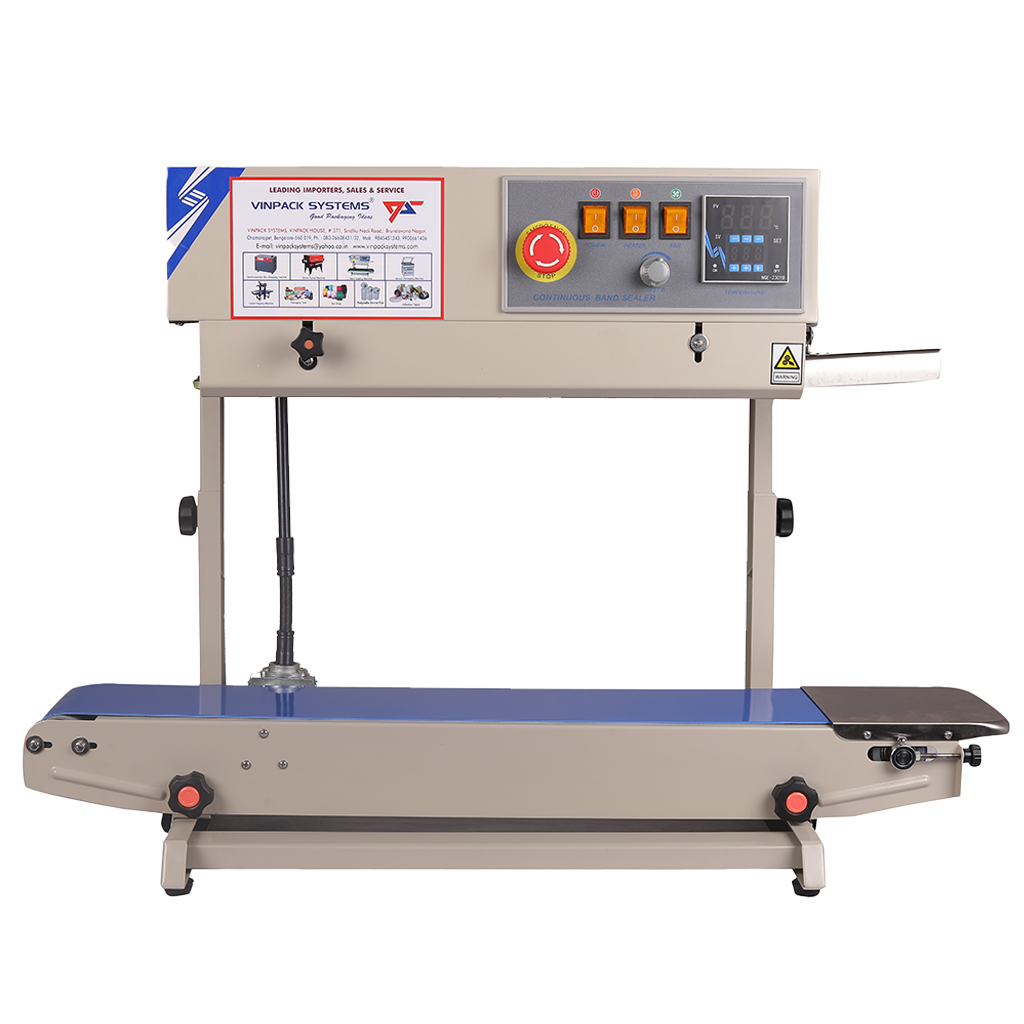

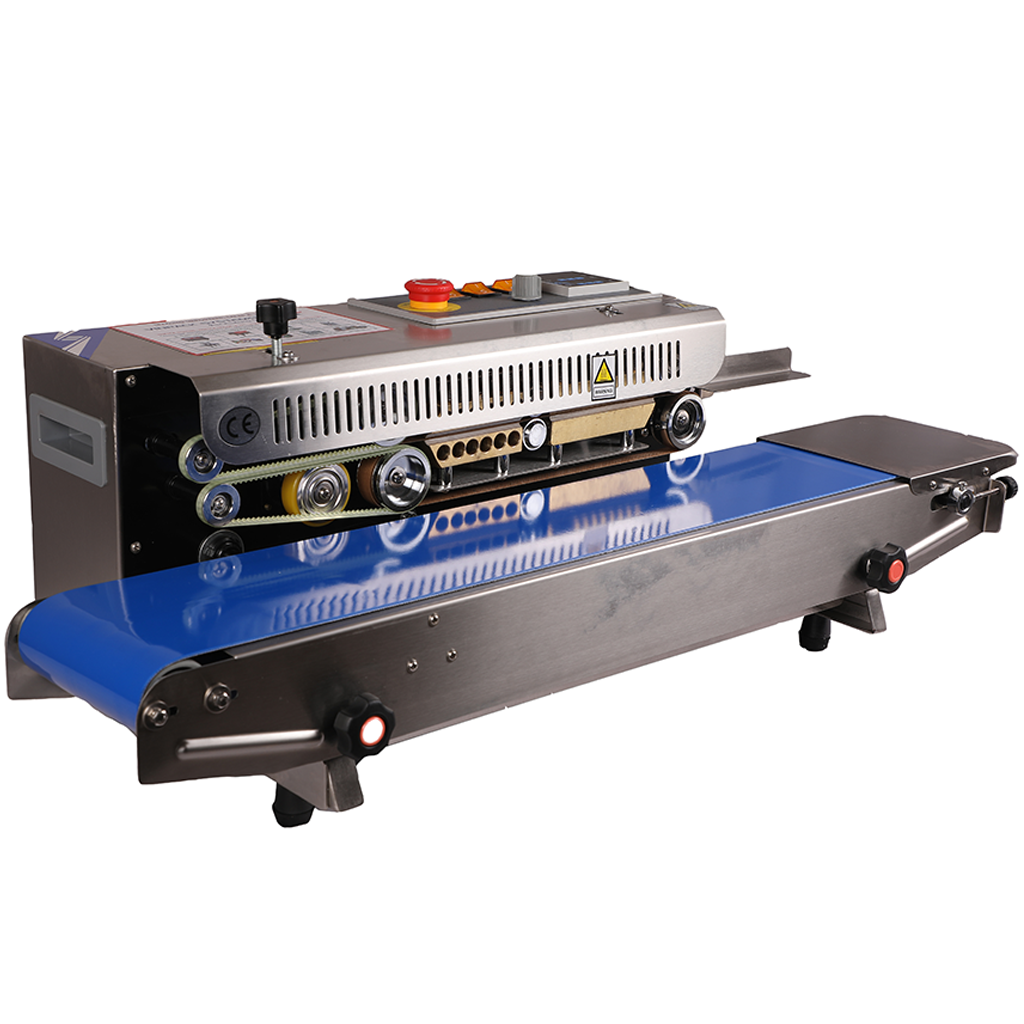

CONTINUOUS BAND SEALERS
Specification
- Power Supply : 500 w
- Voltage Supply : AC 220V, 50Hz
- Temp. Range : 0-330 Celcius
- Sealing Speed : 0-12 mt.min
- Stapping Width : 8, 10 mm
- Sealing Conveyor Loading : < 1 Kg, > 3 Kg
L-SEALER + SHRINK TUNNEL,
SEMI-AUTOMATIC
Specification
- Power Supply : 230V, 50Hz single phase
- Tunnel Size : 16″ W x 8″ H x 30″L
- Power Consumption : 2 kw/hr
Tunnel are available in different sizes & custom made
CHAMBER TYPE SHRINK
WRAPPING MACHINE
Specification
- Power Supply : 230v, 50Hz, single phase
- Sealing Dimension : 550 mm x 42 mm
- Max. Packing Dimension : 500 mm x 350 mm
- Height Of Product : 200 mm
- Power Consumption : 2.25 kw/hr
- Max, Film Size : 600 mm x 300 mm dia
- Machine Dimension : 1190 x 750 x 1450 (H) mm
- Machine Weight : 110 Kg. approx.

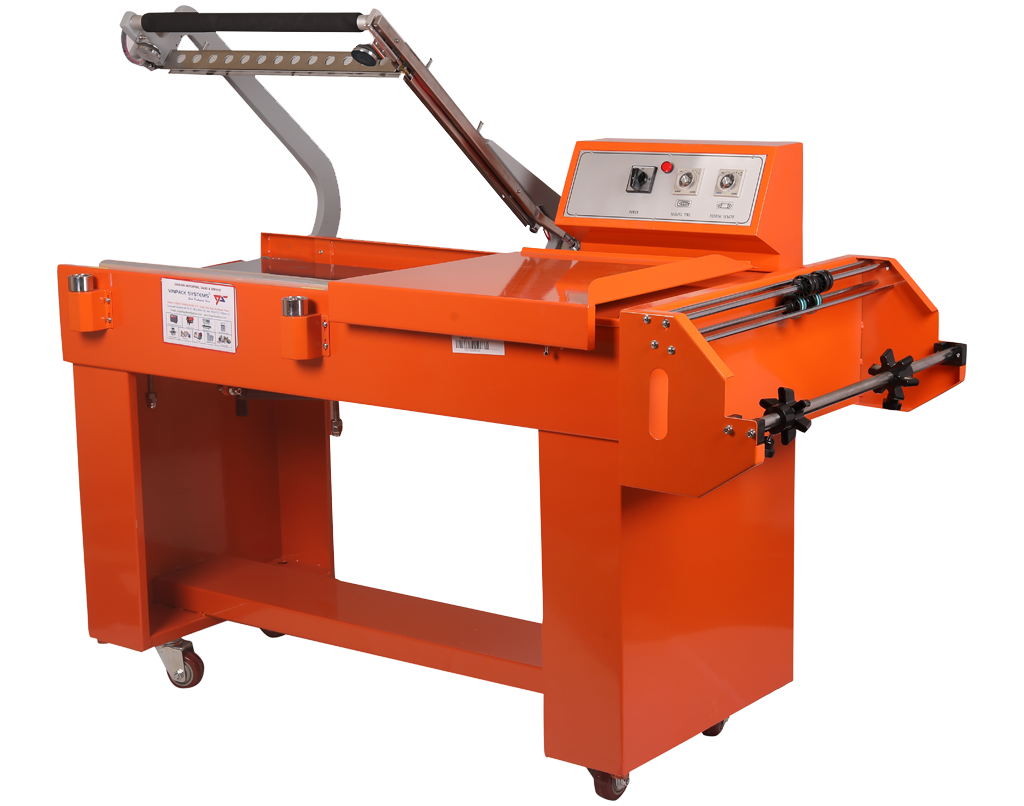

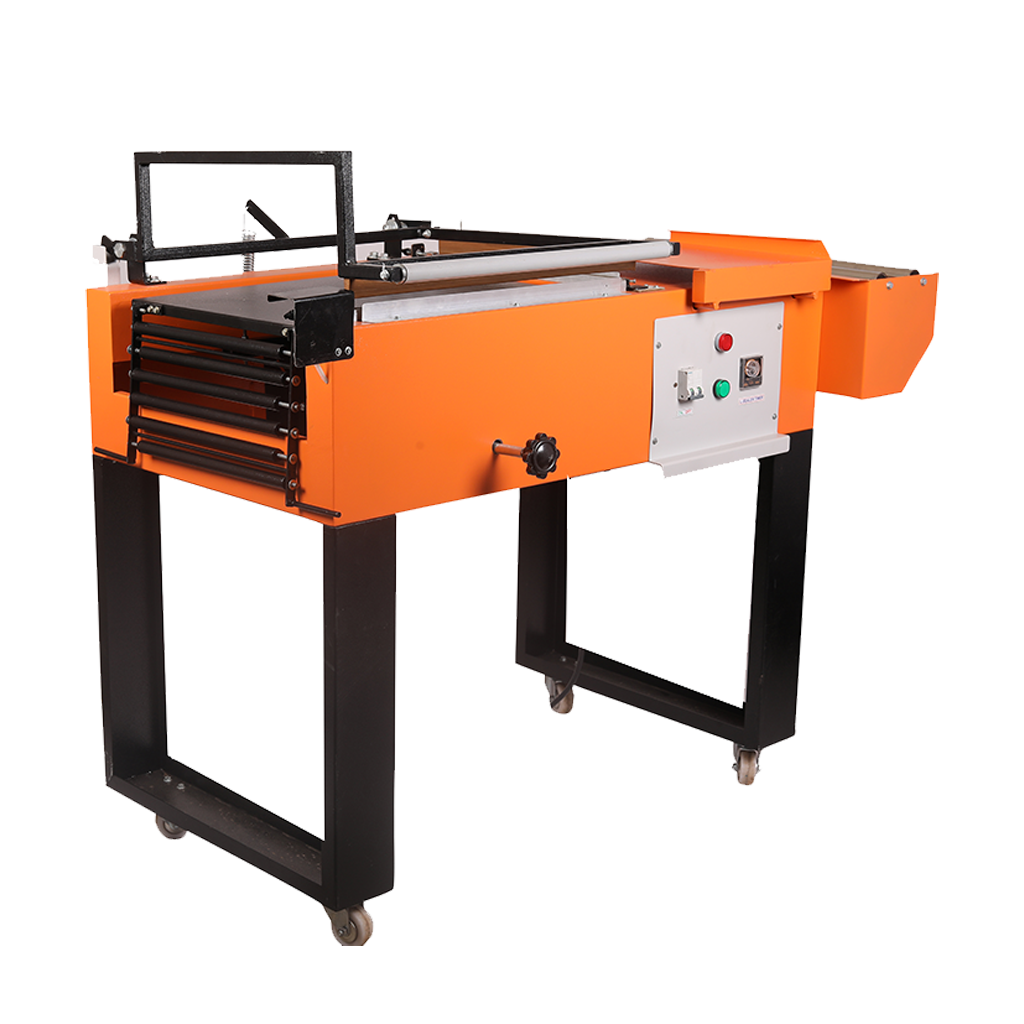

L-SEALER
Specification
- Power Supply : 230V, 50Hz single phase
- Sealing Dimension : 15″ x 20″
- Tunnel Size : 16″ W x 8″ H x 30″L
- Power Consumption : Single Phase

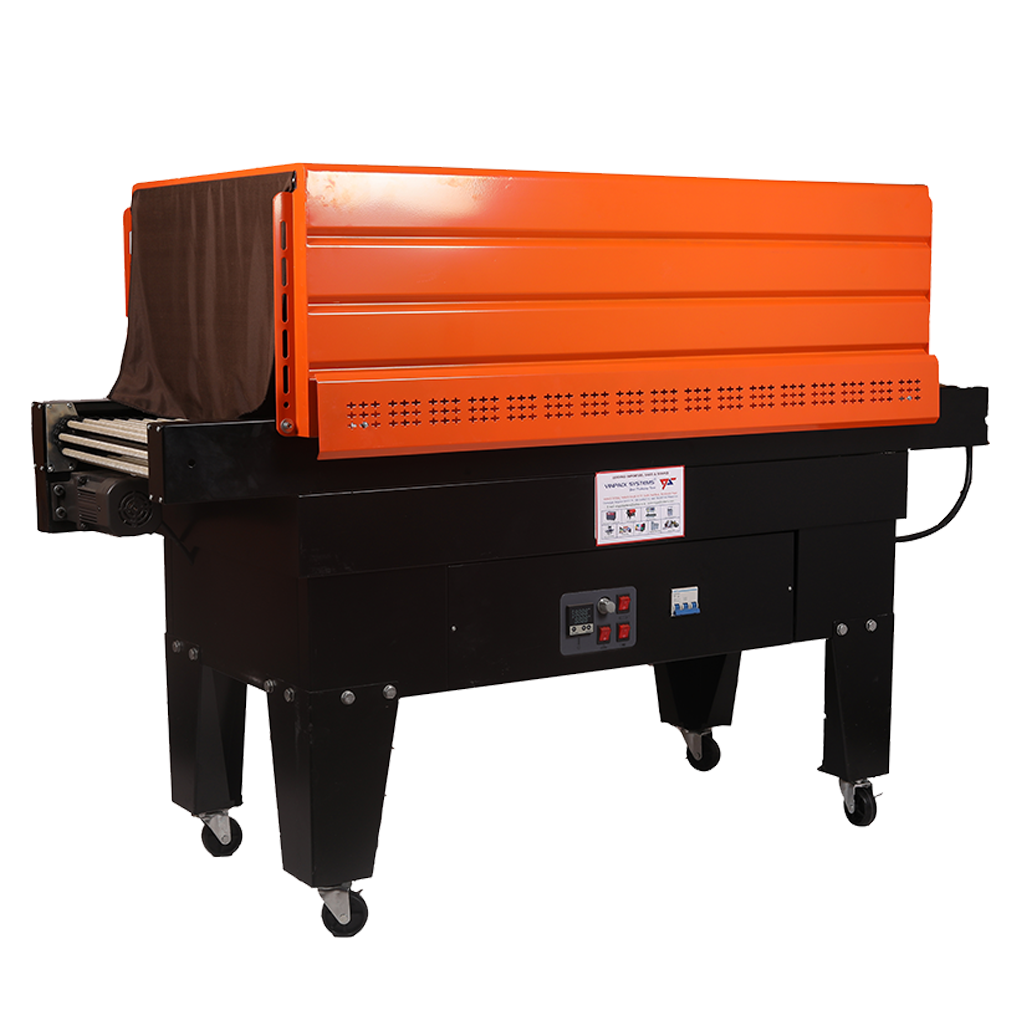

SHRINK TUNNEL
Model Available : BS-3020, BS-4525, BS-4535L
Specification
- Power Supply : 230v, 50Hz, single phase
- Sealing Dimension : 15″ x 20″
- Tunnel Size : 16″W x 8″H x 30″L
- Power Consumption : 3 kw/hr.

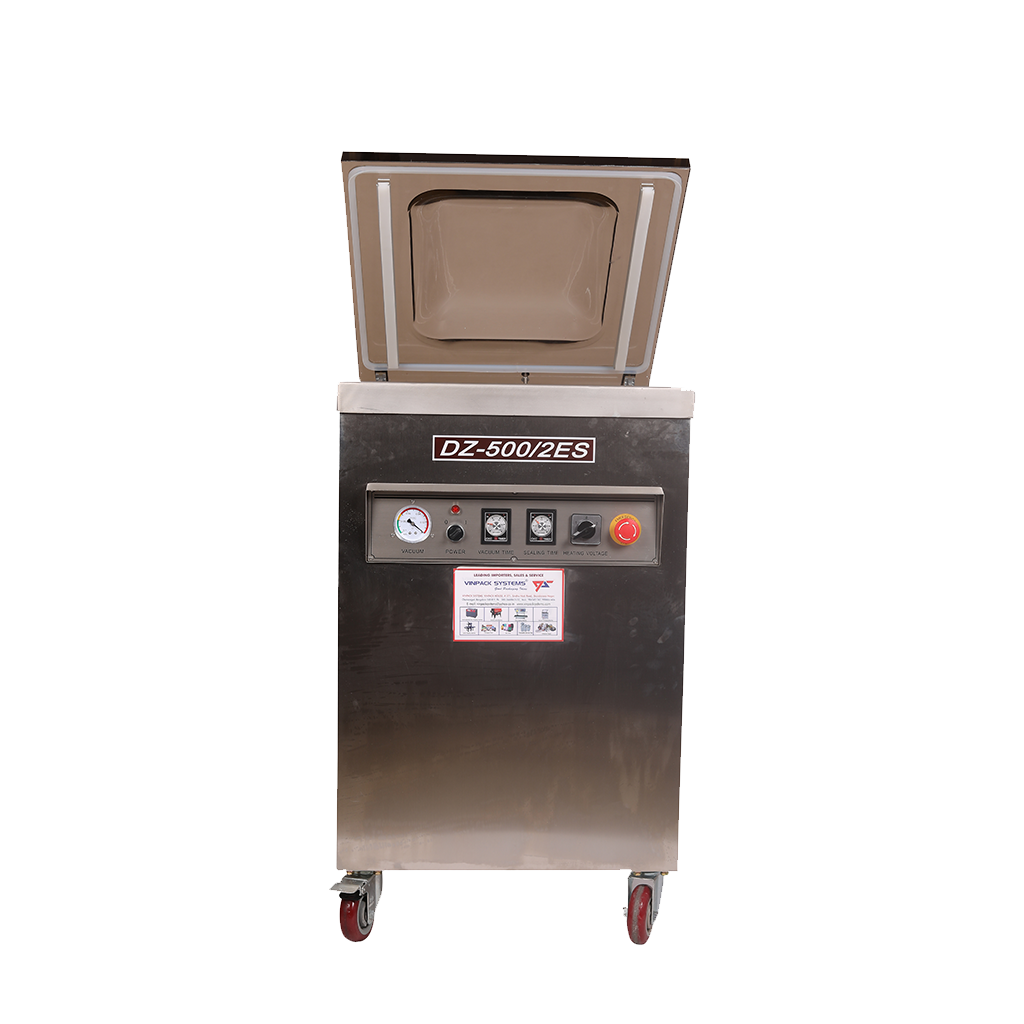

VACUUM PACK MACHINE
Model Available : 400-DZ, 500-DZ, DOUBLE CHAMBER
Specification
- Power Supply : 230V, 50Hz single phase
- Sealing Dimension : 400 X 400
- Power Consumption : Single Phase

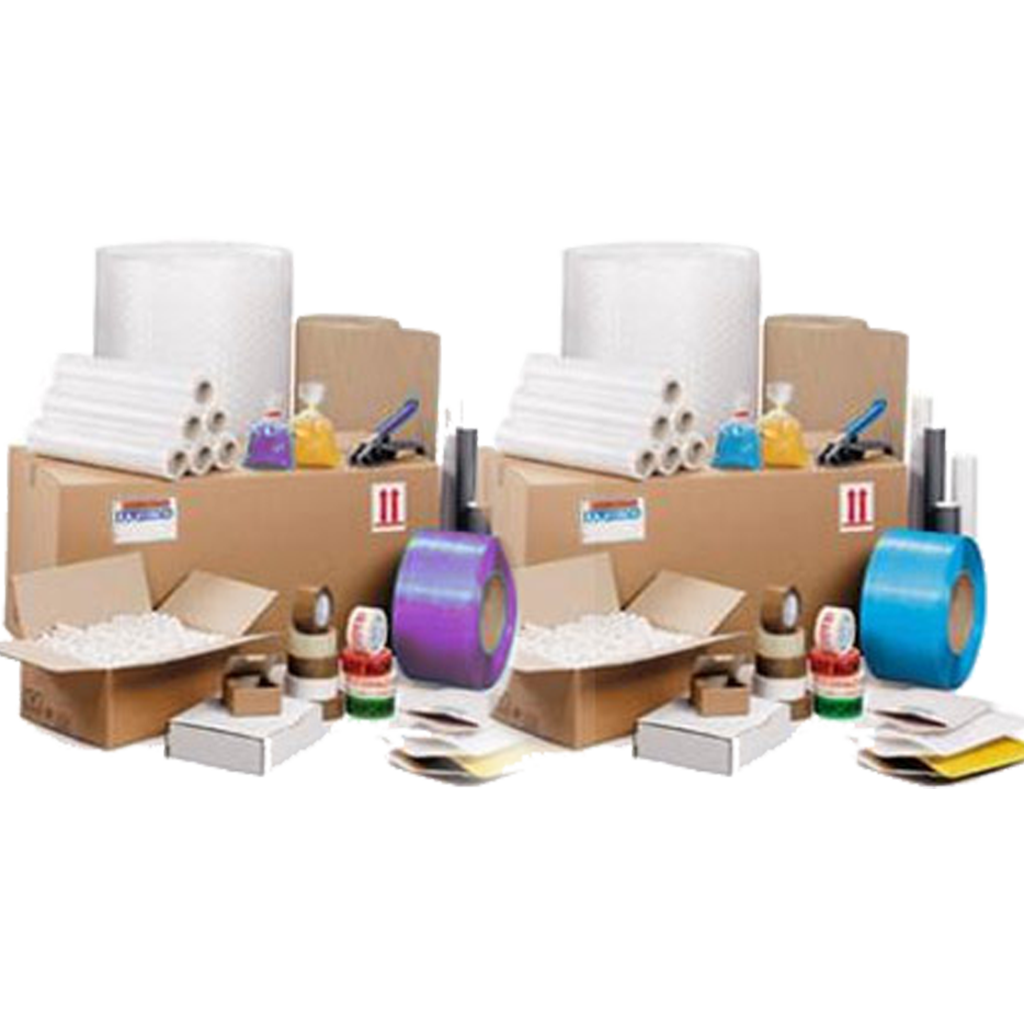

PACKAGING MATERIALS & TOOLS

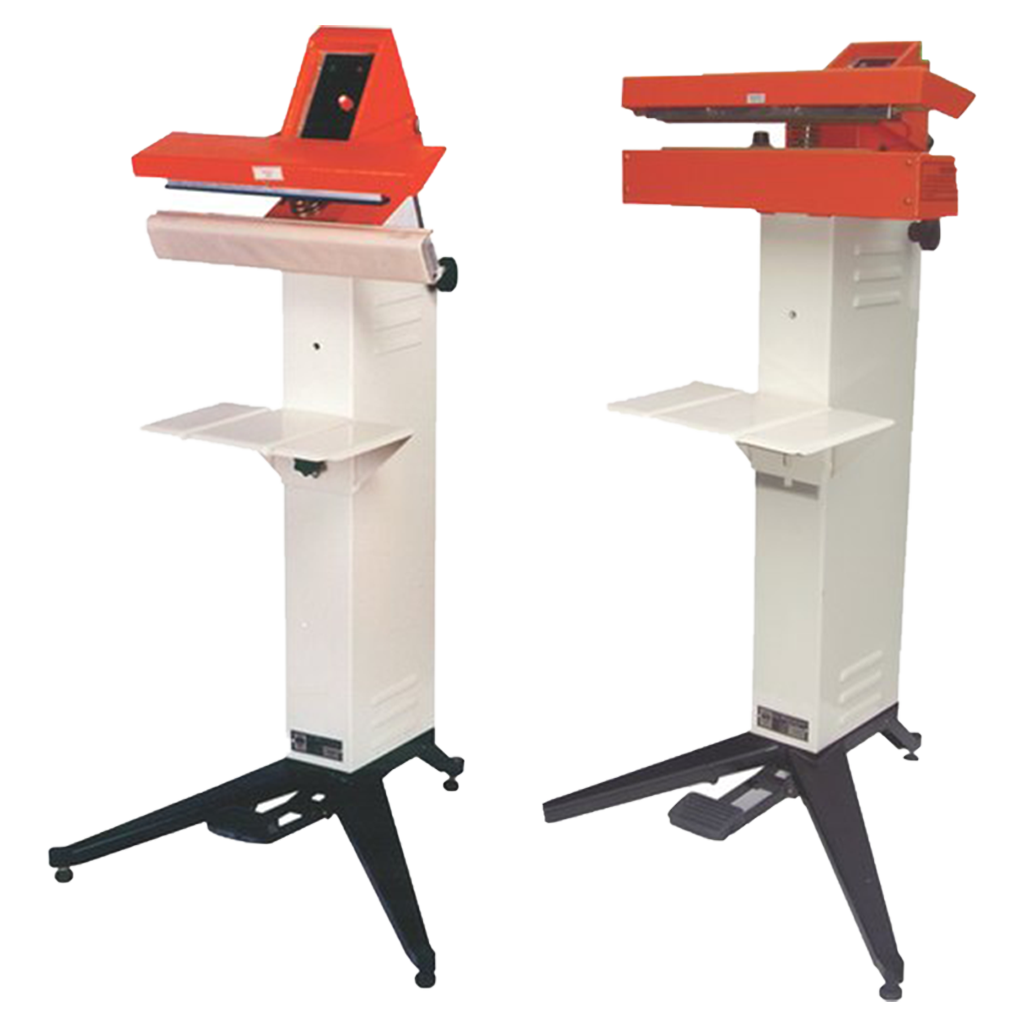

Foot Sealers

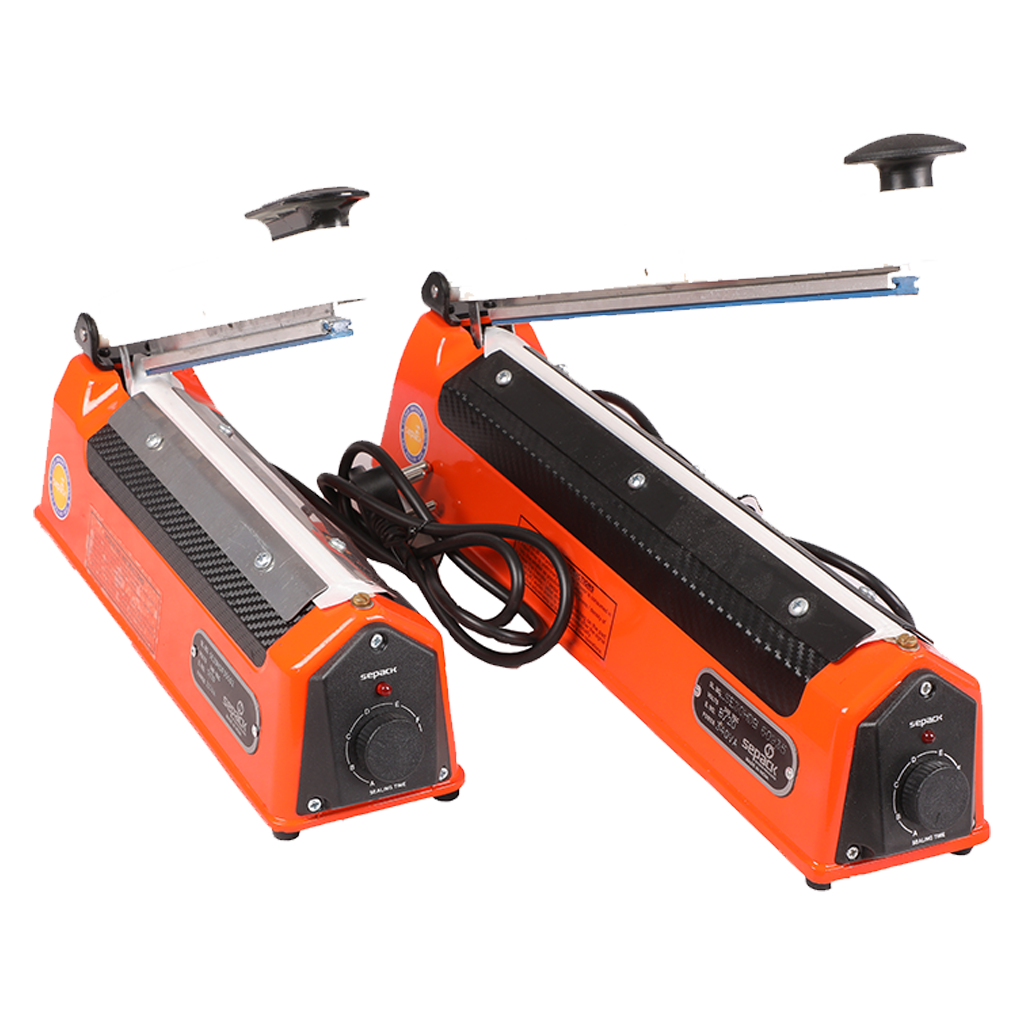

Hand Sealers

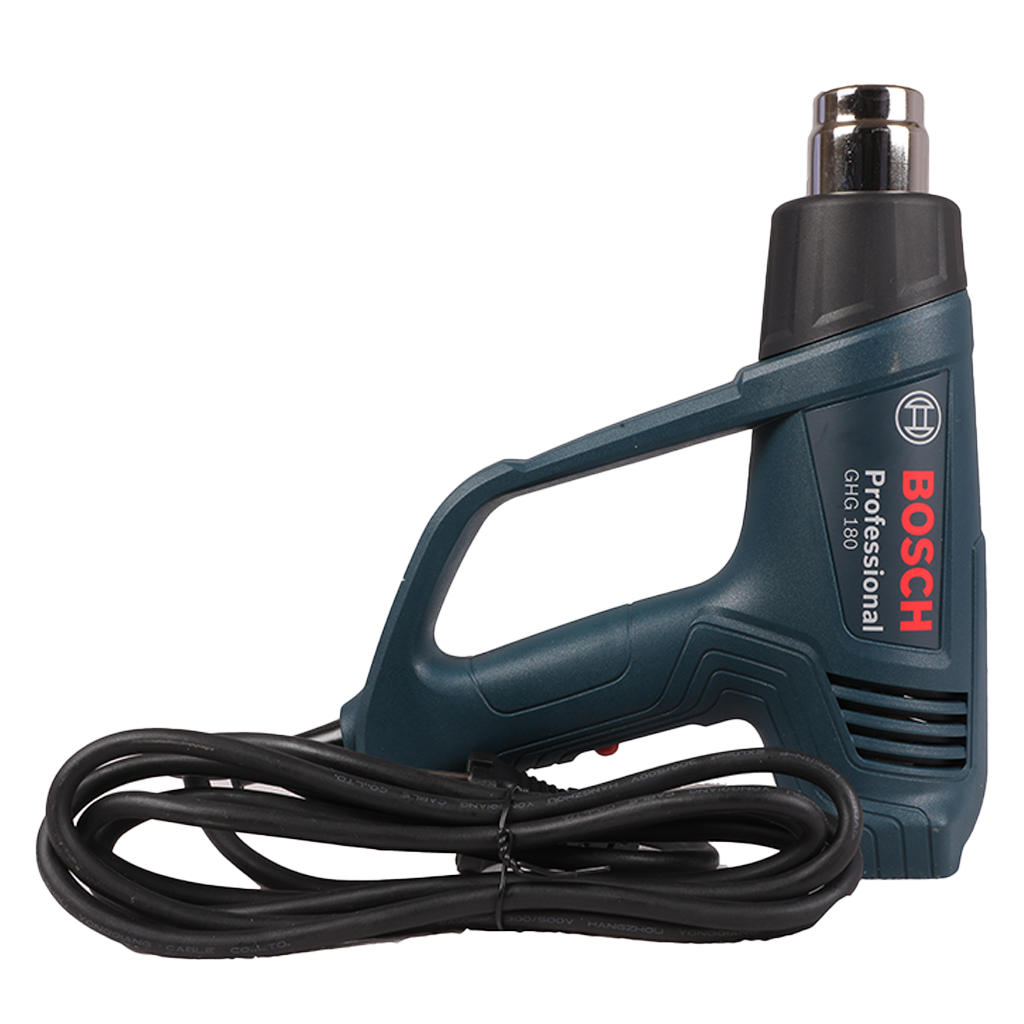

Hot Air Gun

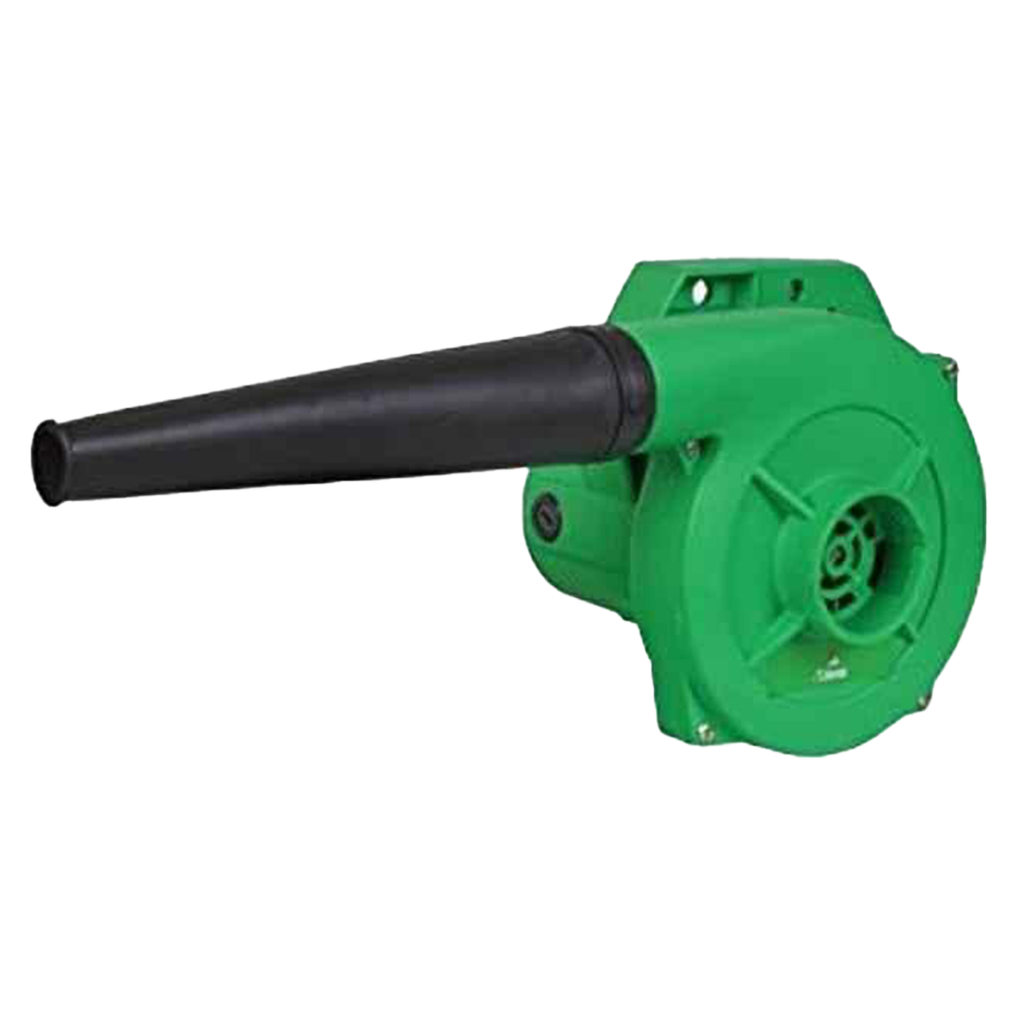

Air Blower
Portable Bag
Closing Machine
Thermocol Sheets
PP Box

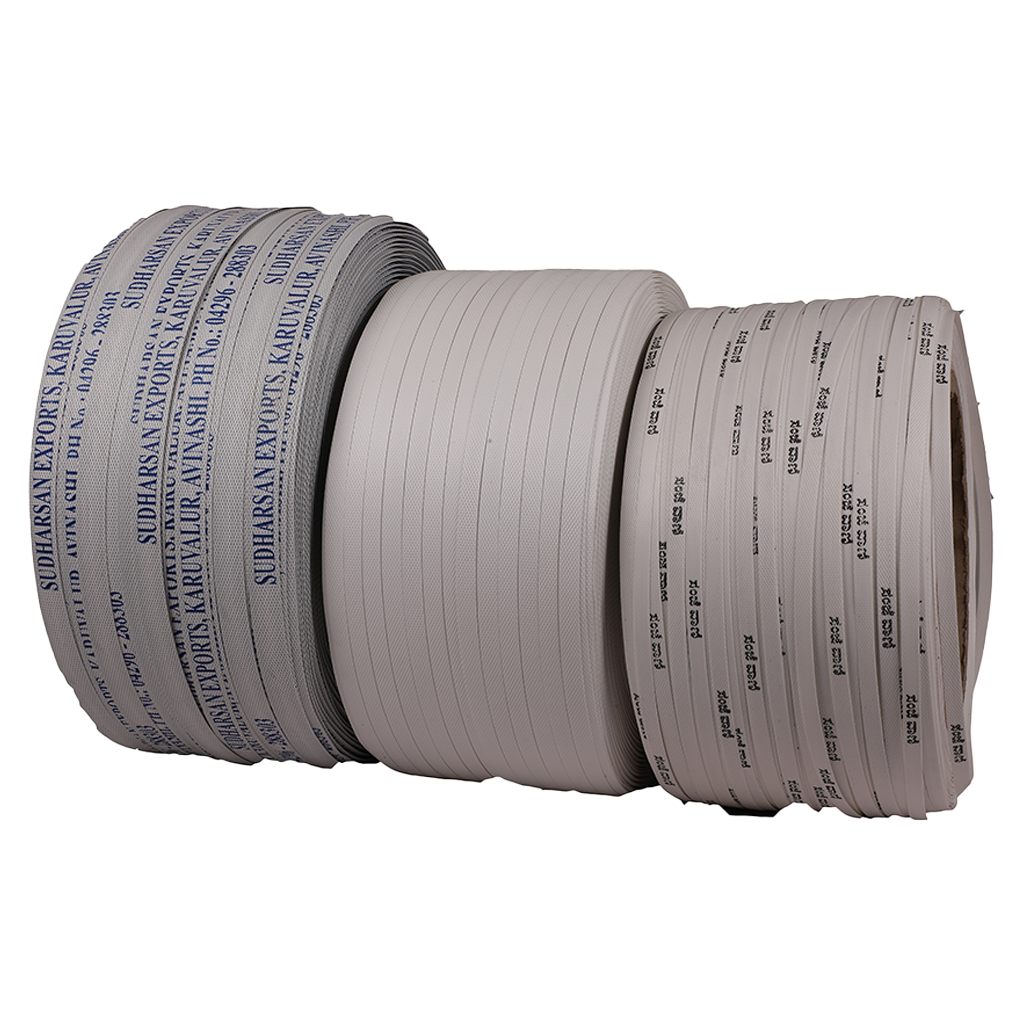

Strapping Rools
Specifications
- Width : 6, 9, 12 & 15mm
- Thickness : 0.5 mm
- Colours : White(All Colors A/V with Print)

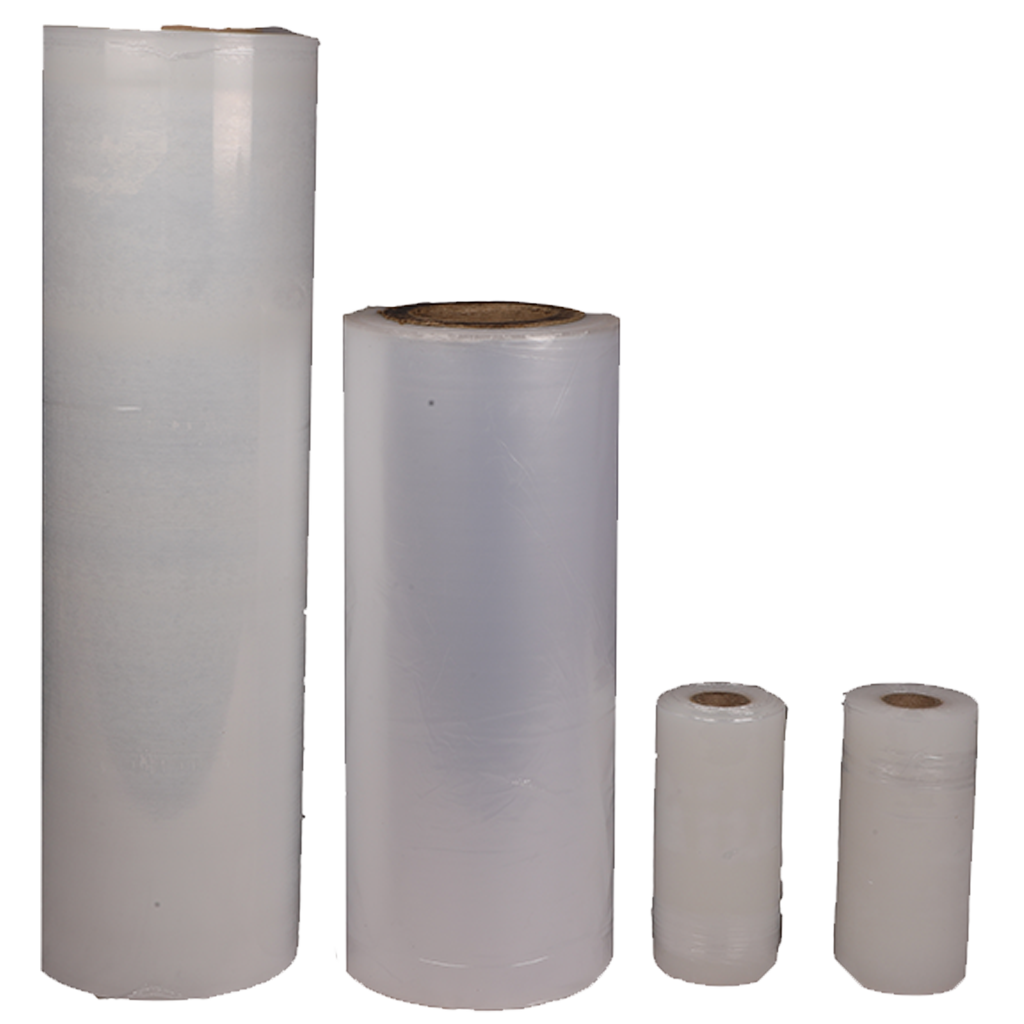

Pallet
Stretch Film
Specifications
- Width : 100 mm to 500 mm
- Thickness : 15 to 30 microns

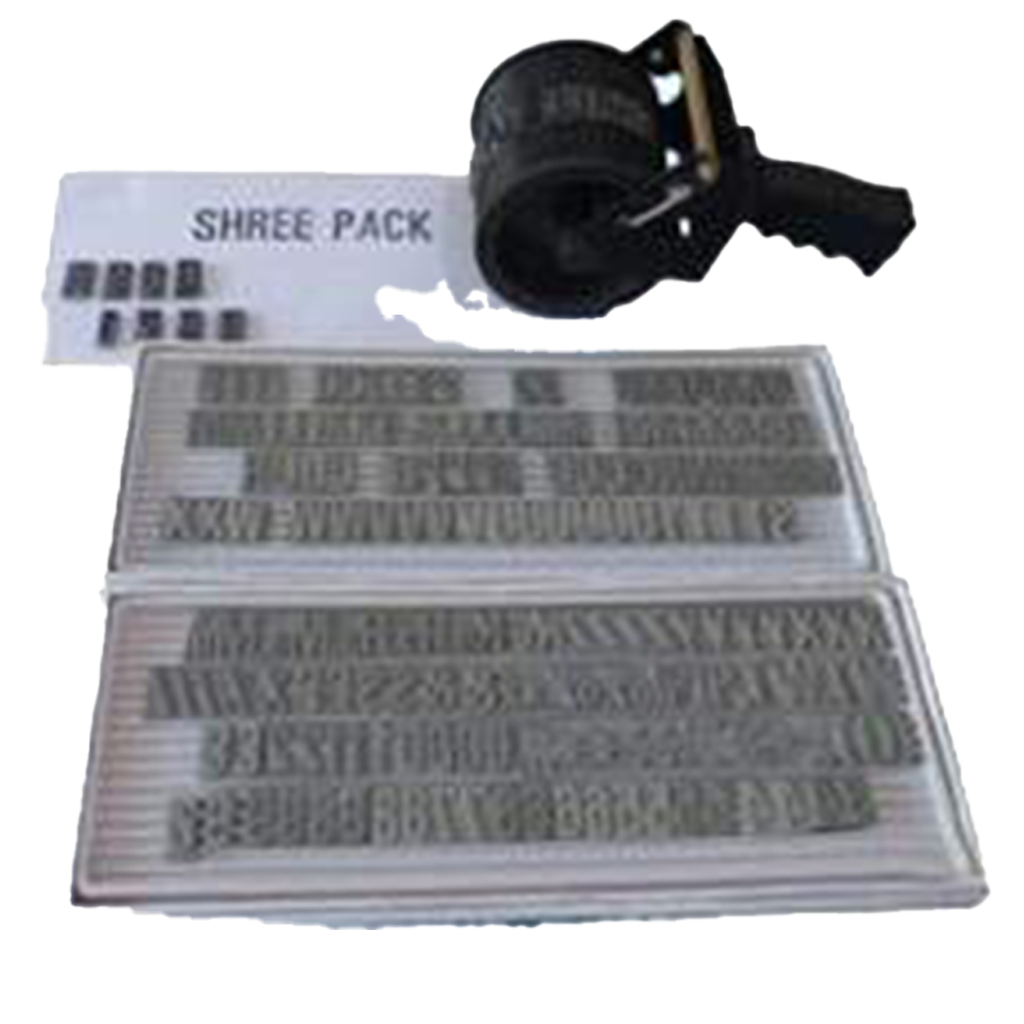

Handy
Marker
Specifications
- 3″ x 12″ , 2″ x 6″
- 6″ x 12, 7″ x 18″

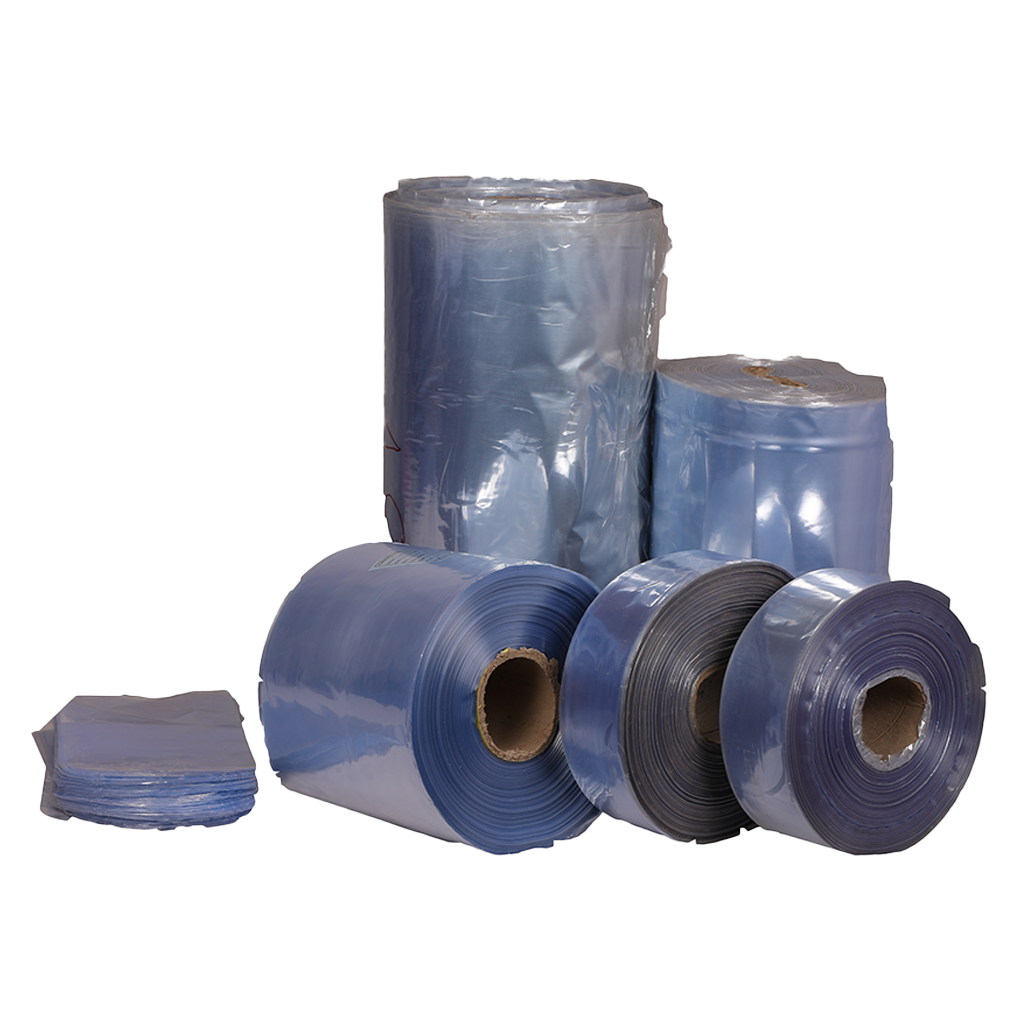

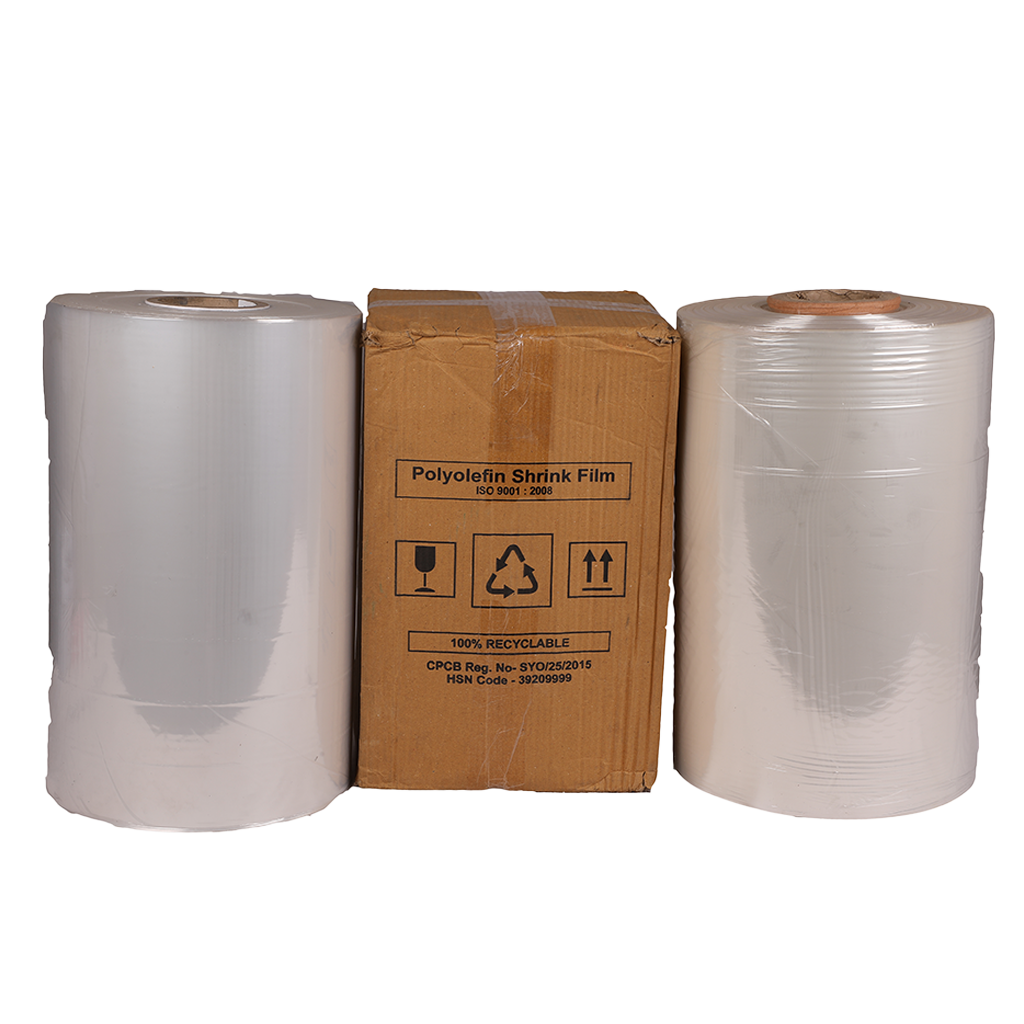

Polylefin
Shrink Film
Specifications
- Width : 6 to 24 inches
- Thickness : 15 microns & 19 microns
- Roll Length : 1332 mtrs.
PCV
Shrink Film
Specifications
- Properties : Crystal Clear, Rapid Shrink
- Shrinkage : 40%
- Sizes : 55 mm to 500 mm
- Thickness : 30 microns
- Also available cut sleeves & pouches

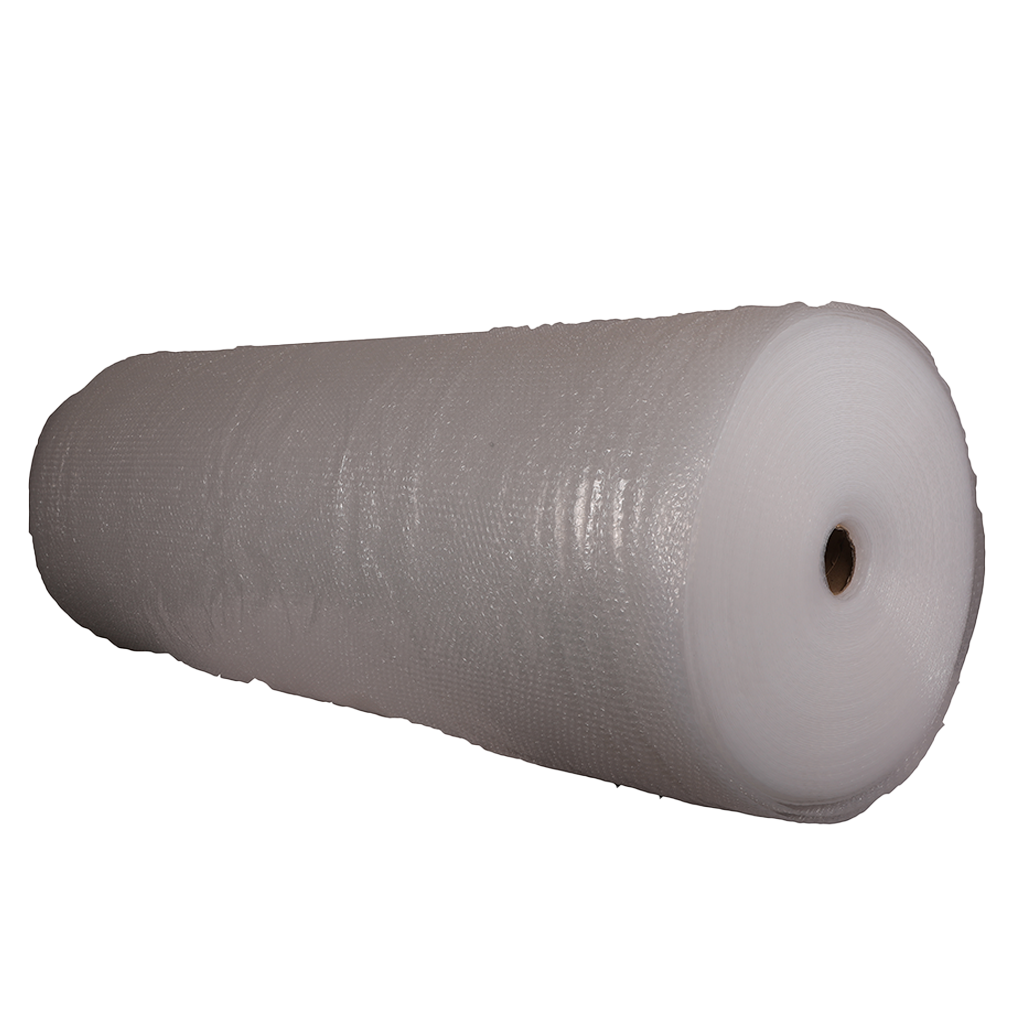

Air Bubble
Poly Film
Specifications
- Standard Width 1500 mm
- Standard Length 100 mtrs
- Gauge from 250 to 600 G onwards
- Also available cut sleeves & pouches
BOPP Self
Adhesive Tapes
Specifications
- Width : 9, 12, 18, 24, 36, 48 & 72 mm
- Thickness : 25 microns & 30 microns
- STD Length : 65 mtrs & 650 mtrs (jumbo rolls)
- Pattern : STD brown & Super Clear
- Colours : Milky White, Blue, Red, Yellow, Black, Green etc
- Also available plain & printed tapes as per customer requirements
